Magnetic switches and photocells

A wide range of magnetic proximity switches are characterized by a high reliability; available in various forms and with all its accessories.

The modulated light photocells, 100% Made in Italy, are also available for automated switches.

Switches

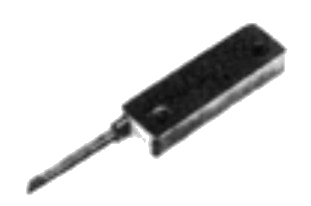

Codice PDAAA PDAAB PDAAR PDAAS PDAAH PDAAX 2NAAA 2NAAB 2NAAC 2PAAA 2PAAB

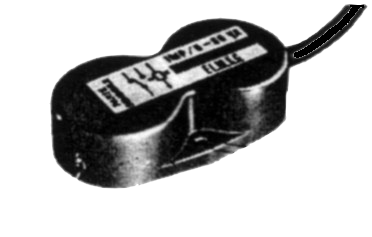

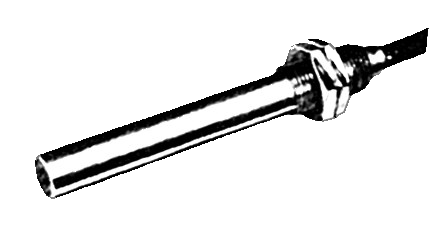

Model PS500 PS510 PS6132 PS6231 PS3150 PS7711 IMOM A10VA IMO A80VA IMO U60VA IMP A80VA IMP U60VA
Dimensions mm 32x10x6 32x10x6 30x18x6 30x18x6 23x14x6 20x20x10,4 48 x D6,7 71x40x17 71x40x17 71x40x17 71x40x17
Case material ABS ABS ABS ABS ABS ABS Alluminium Alluminium Alluminium PVC PVC
Contact type 1NO 1NC 1NO 1NC 1NO 1NC 1NO 1NO 1U 1NO 1U
Max commutation voltage 200 VDC 200 VDC 200 VDC 200 VDC 100 VDC 200 VDC 300 VDC 300 VAC 300 VAC 300VAC 300VAC
Max commutable power 10W 10W 50W 25W 10W 10W 10VA 80VA 80VA 80VA 80VA
Max commutable current 0,5 A 0,5 A 1,0 A 0,5 A 0,5 A 0,5 A
Break Down voltage (contacts) 200 VDC 200 VDC 200 VDC 200 VDC 250 VDC 200 VDC
Break Down voltage (contacts – case) 1500 VDC 1500 VDC 1500 VDC 1500 VDC 1500 VDC 1500 VDC
Temperature range -10 °C / 60 °C -10 °C / 60 °C -10 °C / 60 °C -10 °C / 60 °C -10 °C / 60 °C -10 °C / 60 °C -20 °C / 60 °C -20 °C / 60 °C -20 °C / 60 °C -20 °C / 60 °C -20 °C / 60 °C
Shock resistance 30G 30G 30G 10G 30G 10G
Vibration resistance 1,5mm (10-55 Hz) 1,5mm (10-55 Hz) 1,5mm (10-55 Hz) 1,5mm (10-55 Hz) 1,5mm (10-55 Hz) 1,5mm (10-55 Hz)
Connection Cable (UL 1007 – AWG 26) Cable (UL 1007 – AWG 26) Cable (UL 1007 – AWG 26) Cable (UL 1007 – AWG 26) Cable (UL 1007 – AWG 26) Cable (UL 1007 – AWG 26)
Cable length 300 mm 300 mm 300 mm 300 mm 300 mm 300 mm

Magnets

Codice PHAAB PHAAA 2RAAA 2RAAD

Model TG 0016 PS 6001 MEL 1 MEL 2
Magnet type Permanent Permanent Permanent Permanent
Dimensions mm 30x9x4 57x37x15,5 71x40x17 30x18x6
Case material ABS PVC PVC ABS
Fixing hole 2,5 mm 2,5 mm

Photocells

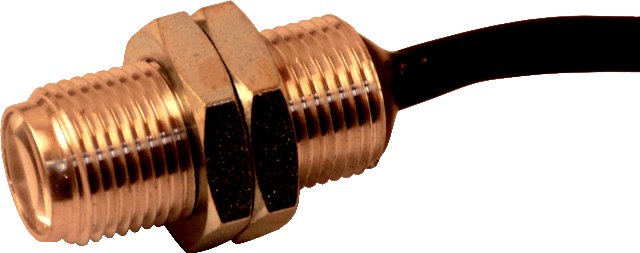

Code 2BAAA 2BAAB

Model LS500P – 500mm LS500R – 500mm
Type Projector Receiver
Fixing Nut Nut
Photo command FRL/FRL-L FRL/FRL-L
Maximum distance 50 cm 50 cm
Minimum detectable dimension 8 mm 8 mm
Temperature range -15 °C / +60 °C -15 °C / +60 °C

Reflector

Item code 12AAA 12AAB 12AAC
Shape Round Round Rectangular
Dimensions mm D 47 D 80 180×50
